Custom P10 Outdoor LED Video Wall For Advertising Media , 160*160mm Module Size

Brand Name : SC

Model Number : Outdoor DIP P10

Certification : CCC IP68 CE

Place of Origin : SHENZHEN CHINA

MOQ : Square Meters / 1 Piece

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 5000 Square Meter/Square Meters per Month

Delivery Time : 10 days after received deposit

Packaging Details : Wooden box,Flight Case

Module Size : 160*160mm

Brightness : 7500-8000nits

Control Method : Synchronization

Color : 1R1G1B

Module Number : Outdoor DIP P10

Pixel pitch : 10mm

Warranty : 2 years

Pixel resolution : 16dots(W)*16dots(H)

Contact Now

Custom P10 Outdoor LED Video Wall For Advertising Media

Product Specification:

Outdoor P10 LED display
Module	pixel pitch	10mm
	module size	160*160mm
	pixel configuration	16*16dotS
Cabinet	cabinet size	960mm960mm100mm
	weight	0.38KG
	material	Steel
	pixel density	10000pixels/sqm
	cabinet density	9216dots
	modules quantity	36PCS
	Maintenance	Front/Back maintenance
Screen	brightness	7500~8000cd/sqm
	viewing distance	10 -50m
	viewing angle	hor.160°ver,120
	life time	100,000hour
	operating temperature	-20°C~+60°C
	operating humidity	10%~95%
	operation voltage	AC220V±10% 60hertz±10%
	power consumption	Max:800W/sqm
	front color	black
	protection	IP65
	LED fail	<0.0001
	LED life time	≥100000 hrs
	Smoothness	±1mm
Control system & software	communication distance	<100meters(by cat5 net cable),500meters of muti-mode optical fiber;1000meters of single-mode optical fiber
	brightness adjustment	manual or auto 100 grade adjustibl
	grey scale	16bit/color
	color	28.1 million
	LED driving method	1/4 , 1/3 and 1/2scan
	frame rate	60 hertz
	image refresh rate	>1800Hz
	input signal	HDTV/PAL/S-VIDEO/VGA/DVI

Advantage :

1)High cost performance.

2) Good Consistency and High resolution.

3)High brightness and refresh rate .

4)Good after-sale services.

5)In the premise of guaranteeing quality,our company sales at low profit and warranty for 3 years.

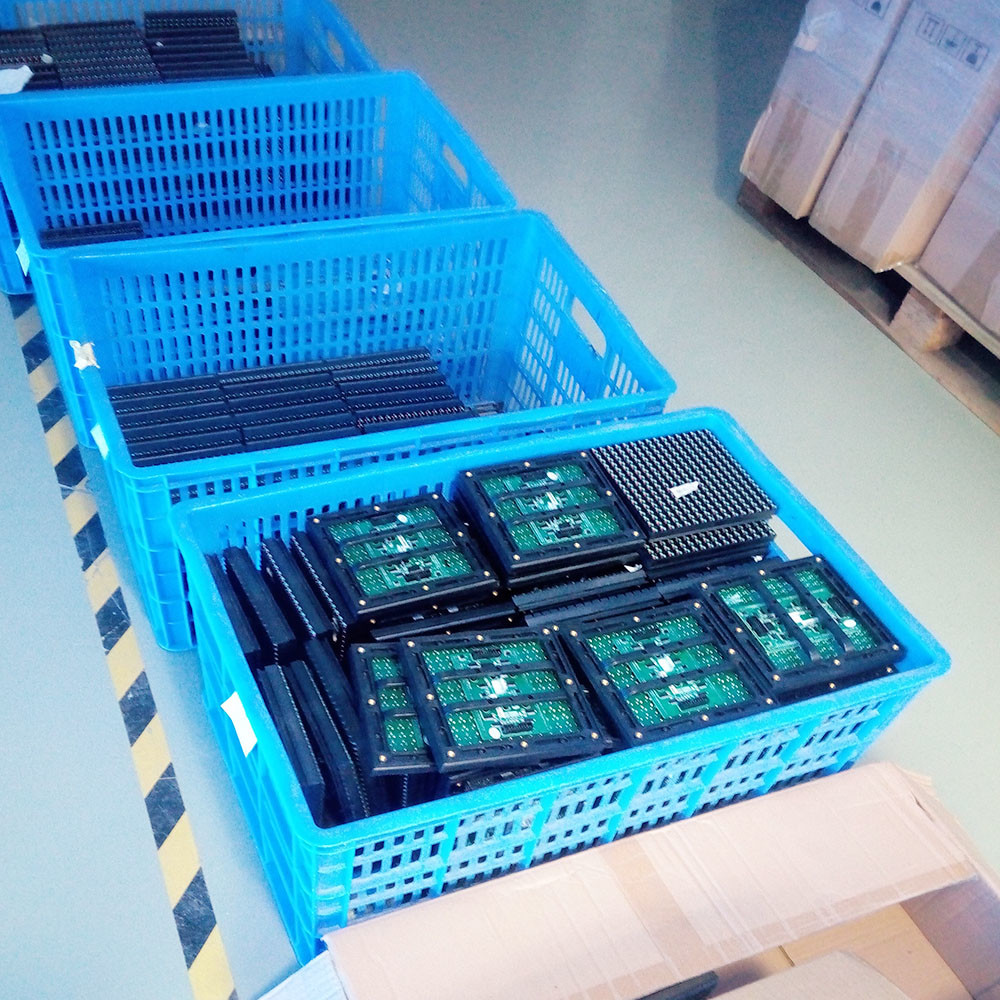

Project Show:

Custom P10 Outdoor LED Video Wall For Advertising Media , 160*160mm Module Size
